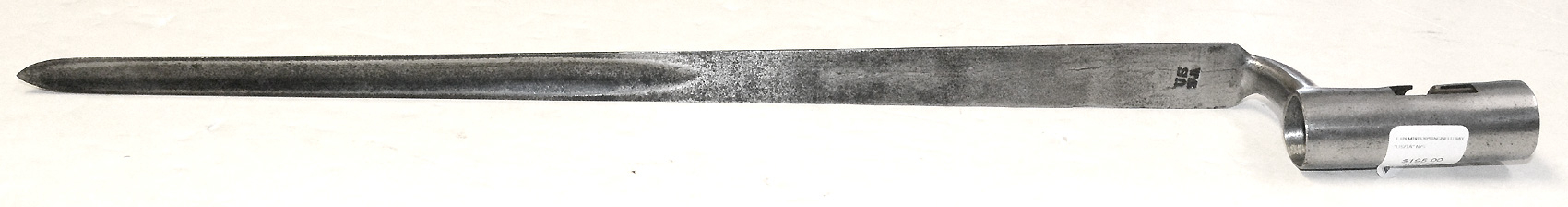

US M1816 BAYONET WITH US/TA INSPECTOR’S MARKING AND BATCH CODES

$195.00 SOLD

Quantity Available: None

Item Code: 1052-72

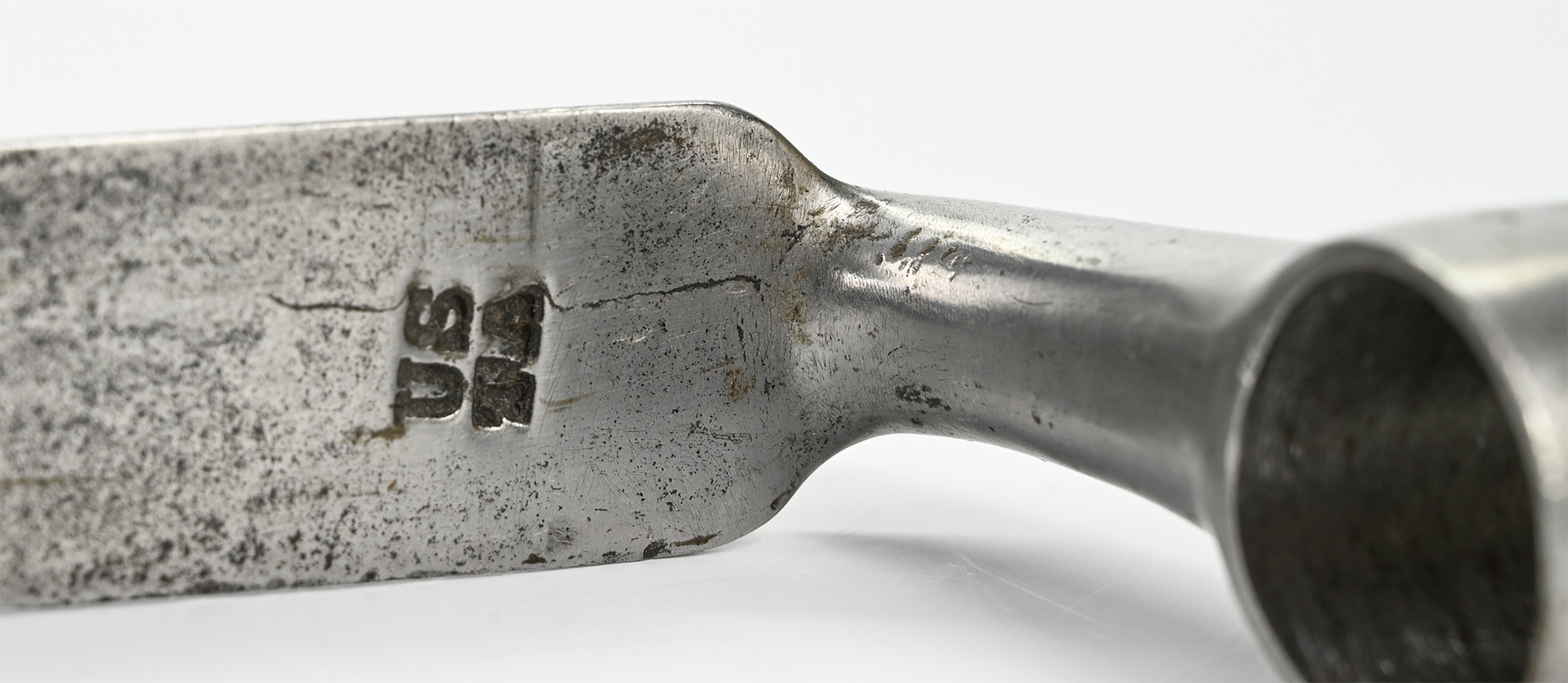

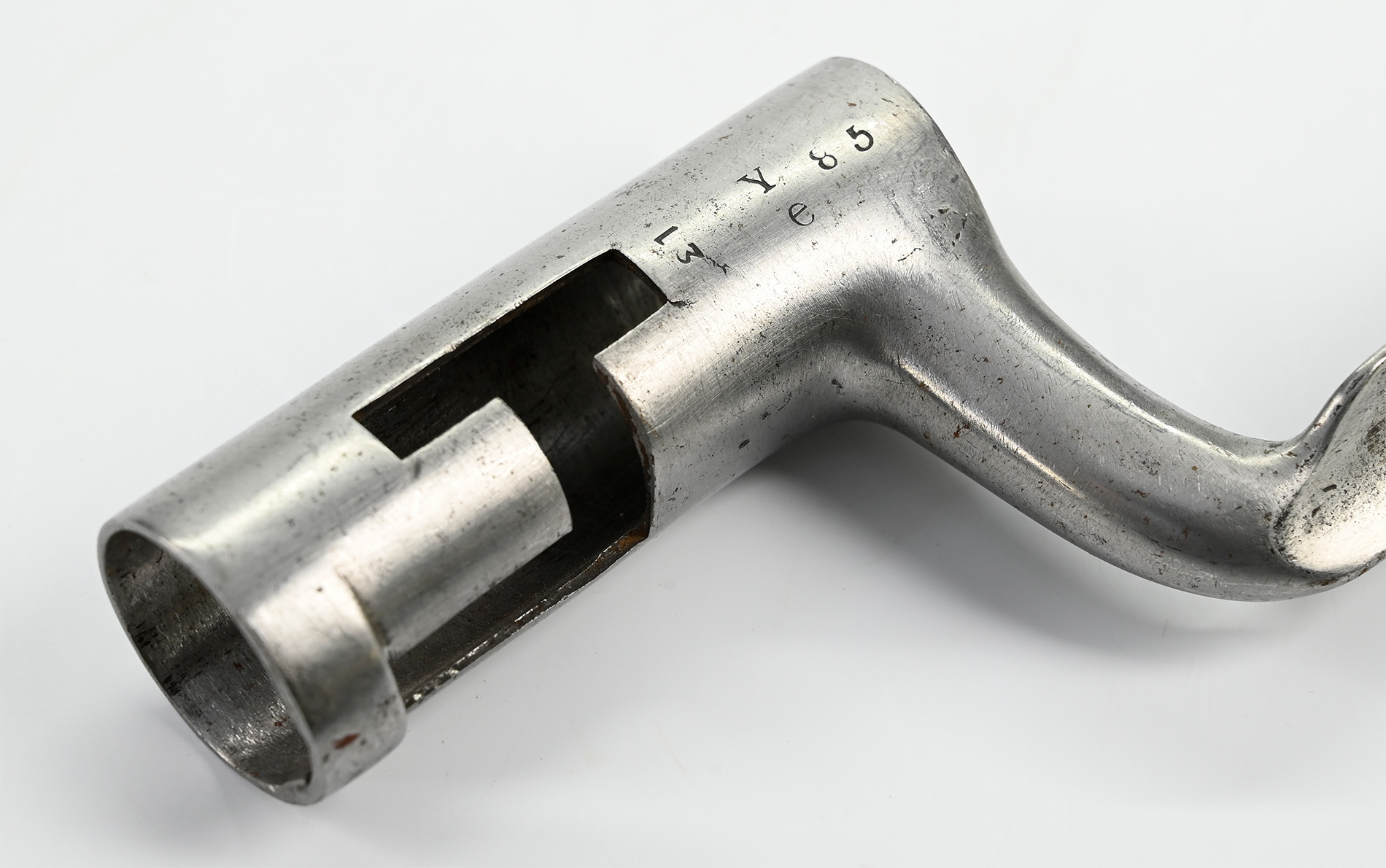

This is from a collection of bayonets we recently acquired. This Model 1816 was carefully cleaned and is, correctly, in the bright, with some gray spotting. It shows a US/TA inspector’s mark on the face of the blade at the base, a mark listed by Reilly among inspector stamps. The socket also bears an alpha-numeric stamp that is likely a batch code, though with two letters: “Y” over an “e.” A small “13” at the rear of the mortise might be an individual workman’s number. Reilly felt alpha-numeric codes for batches of 2,400 bayonets indicated manufacture at Springfield or Harpers Ferry.

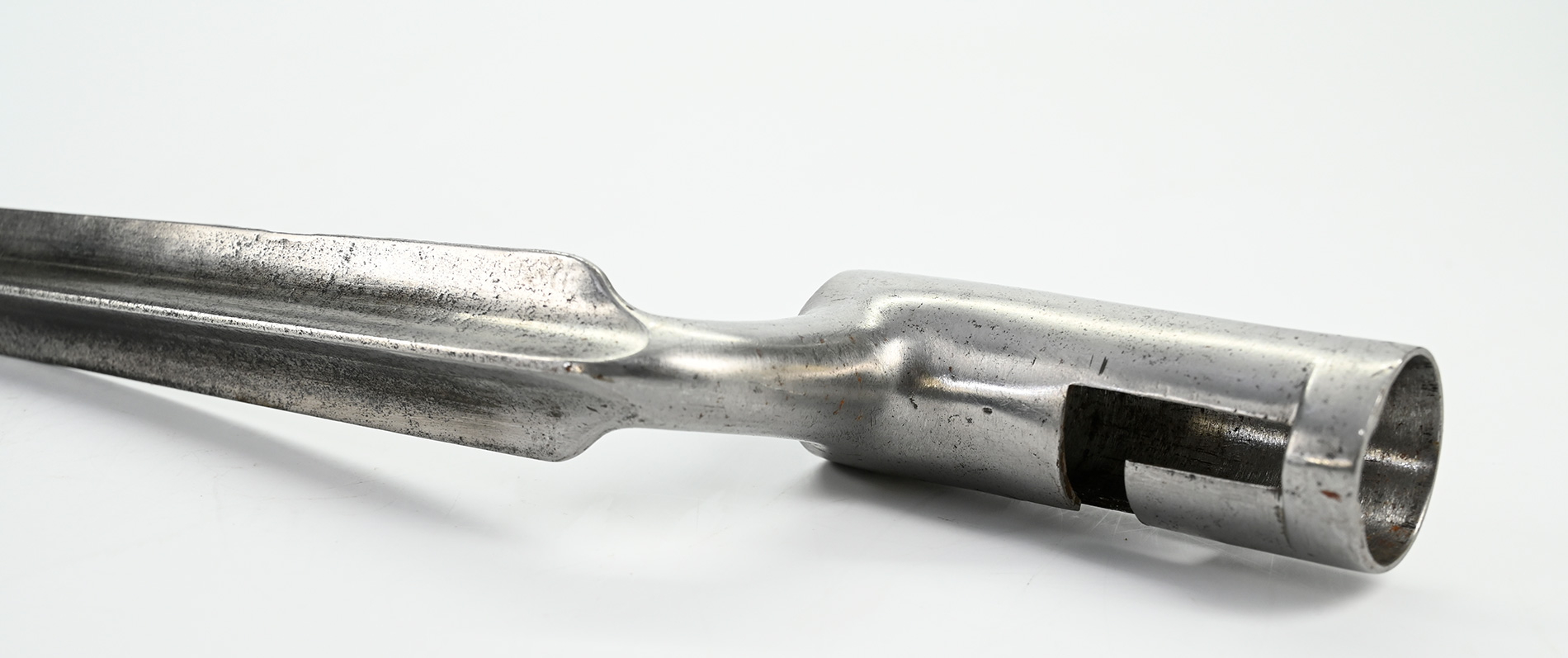

The model 1816 bayonet is a collecting category of its own. Nominally measuring 19 inches overall with a 3-inch socket and 16-inch blade generally with a blunt “slash” point (in Reilly’s words,) its production extended into the 1840s and its use extended well into the Civil War, with some replacements made even then. There were variations in the presence or absence of face flutes and the shape of the point up to about 1822, but the pattern is readily recognizable by the T-shaped bayonet lug mortise (which may have started about 1813) and integral bridge, that would keep the bayonet on the muzzle of the musket even if pulled forward when withdrawing the blade from a target or jarred by the recoil of discharge. They were generally finished in the bright, with some possible browned exceptions from 1822 to 1831, and a few tinned examples. Careful inspection resulted in high degree of uniformity, but there is a lot of variety in blade markings, where in addition to a “US,” the initials of an inspector, maker, or state may be found.  [SR] [ph:m]

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

THIS ITEM, AS WITH ALL OTHER ITEMS AVAILABLE ON OUR WEB SITE,

MAY BE PURCHASED THROUGH OUR LAYAWAY PROGRAM.

CLICK HERE FOR OUR POLICIES AND TERMS.

THANK YOU!

Inquire About US M1816 BAYONET WITH US/TA INSPECTOR’S MARKING AND BATCH CODES

For inquiries, please email us at [email protected]
