This is a nice example of the .36 caliber "Navy" version of the percussion revolvers made by Ethan Allen and his brother-in-law Thomas Wheelock in Worcester, Mass. In 1856 the two formed a partnership that lasted until Wheelock's death in 1865, and were most known for their Pepperbox Percussion revolvers. However, they also did make many other types of firearms, including the "Side and Center Hammer" revolvers. These were produced from 1859 to 1861.

Allen and Wheelock included such luxuries as a hinged trigger guard that actuated the ejector, a loading gate on the cylinder, and an easily removable arbor pin. Allen also went to a "center hammer" design, instead of the earlier side hammer, which improved the frame strength and ease of loading.

Despite some legal setbacks, Allen persevered, continuing to manufacture percussion revolvers, and long arms, including a drop-breech cartridge rifle and double-barreled shotguns with metal wrists. Allen also produced a successful line of single shot, cartridge derringers that did not infringe upon the Rollin White patent.

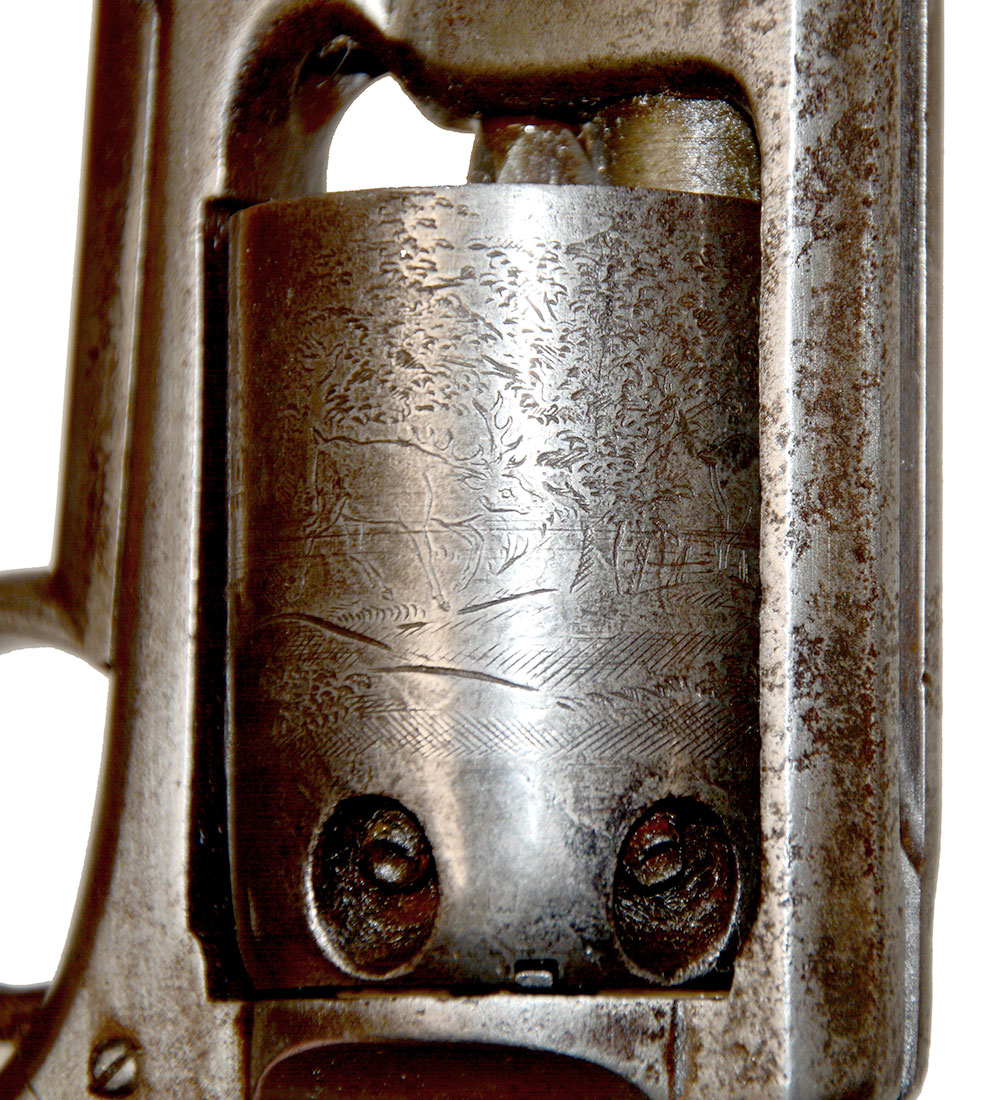

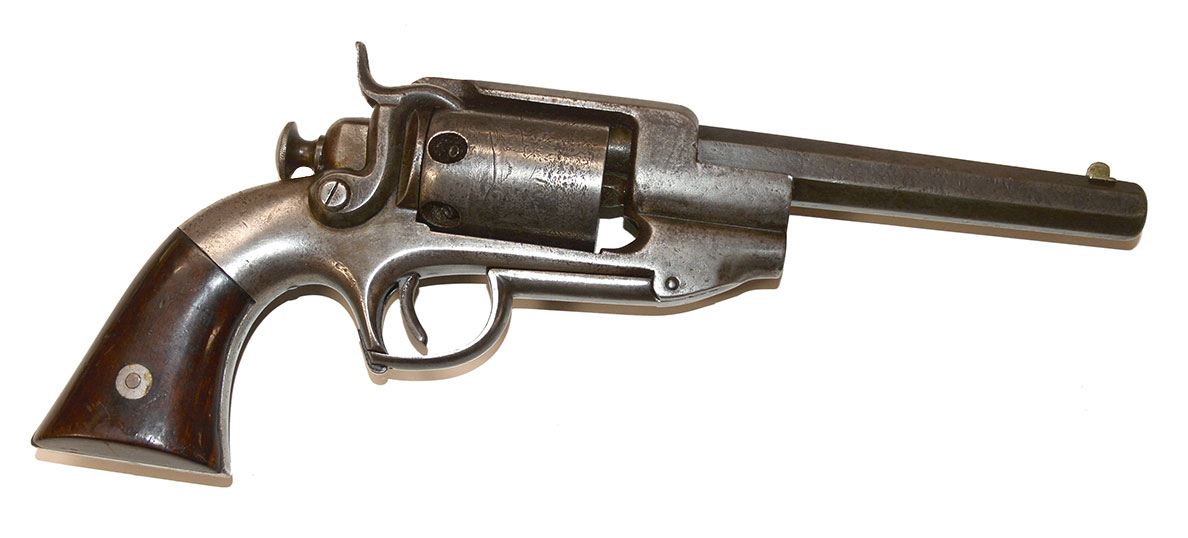

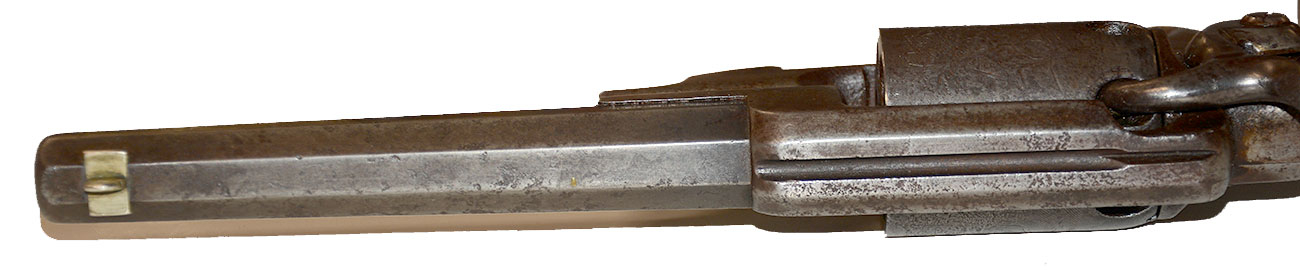

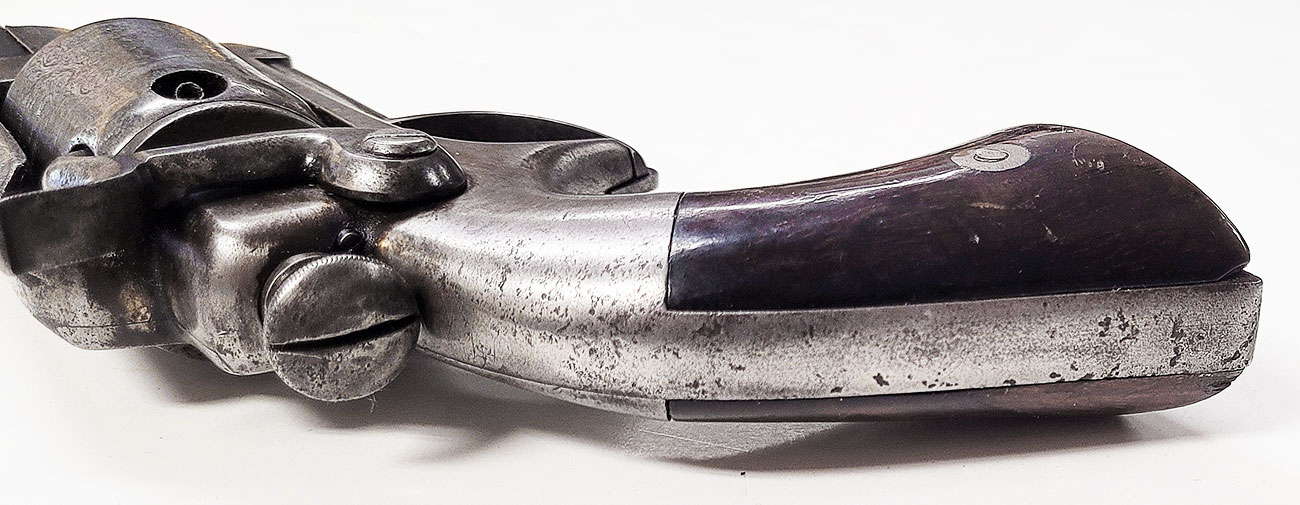

This example is a .36 caliber “Navy” model, differentiating itself from the “Army” model in caliber, size, and the extended octagonal barrel (the Army had a barrel that was round toward the muzzle to accommodate the larger .44 caliber round). German silver blade front sight. Walnut grips are in nice condition with only the left side panel lower corner being chipped and glued. The grips have a thick coat of varnish present with a little flaking on the bottom. The timing and lockup are both tight. The bore is dark but, retains rifling.  The original bluing is completely gone and all metal surfaces are plum grey. Some minor oxidation on the left side of the barrel and top of the frame. The barrel is worn and lightly stamped ALLEN & WHEELOCK. WORCESTER. MASS. US. ALLEN’S PATS SEPT 7 NOV 9 1858. Some sections are illegible. A roll engraving can be seen on the cylinder surface. Serial number 70 can be found on the frame, grips, cylinder arbor, rear of cylinder and loading lever.

The Civil War spurred an unprecedented level of innovation, with this pistol being a case in point.   [stp][ph:L]
