RARE .58 CALIBER WILLIAMS PATENT “CLEANER” CARTRIDGE – RED PAPER

RARE .58 CALIBER WILLIAMS PATENT “CLEANER” CARTRIDGE – RED PAPER

Hover to zoom

Image 1 Image 2 Image 3 Image 4

$325.00

Quantity Available: 1

Item Code: 2026-1024

Shipping: Determined by Method & Location of buyer

To Order:
Call 717-334-0347,
Fax 717-334-5016, or E-mail

This is an original cartridge containing a .58 caliber, Williams, Type III bullet.  Patented and manufactured by Elijah D. Williams.  Williams’ patent called for the use of zinc washers and a pin or plunger as a means for the bullet to take the rifling of the musket.  In operation, the powder gases directly or indirectly flattened the washers causing them to expand into the rifling.  The flattened washers also scraped away the fouling in the bore as they exited the gun, hence the nickname “cleaners.”

The Williams bullet has a distinctive nose and rings as well as the “plunger”.  This style with a “plunger” was patented December 9, 1862 (#37,145).  The bullet in this cartridge, the “type III”, has two rings with one disk (no slits) secured by a cast plunger.  Production of the “type III” began in mid-1863; the shorter version of the Williams bullet is the result of rising lead prices. Cartridges are found in red, blue, and tan paper.

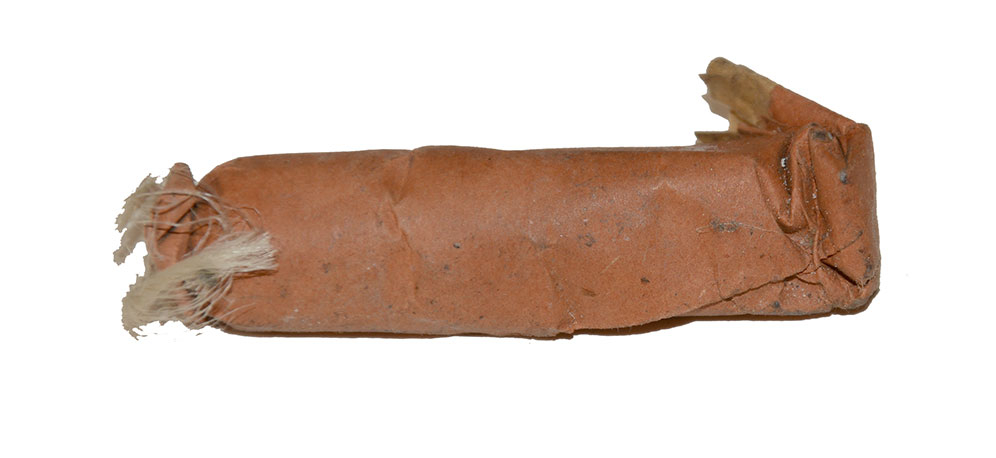

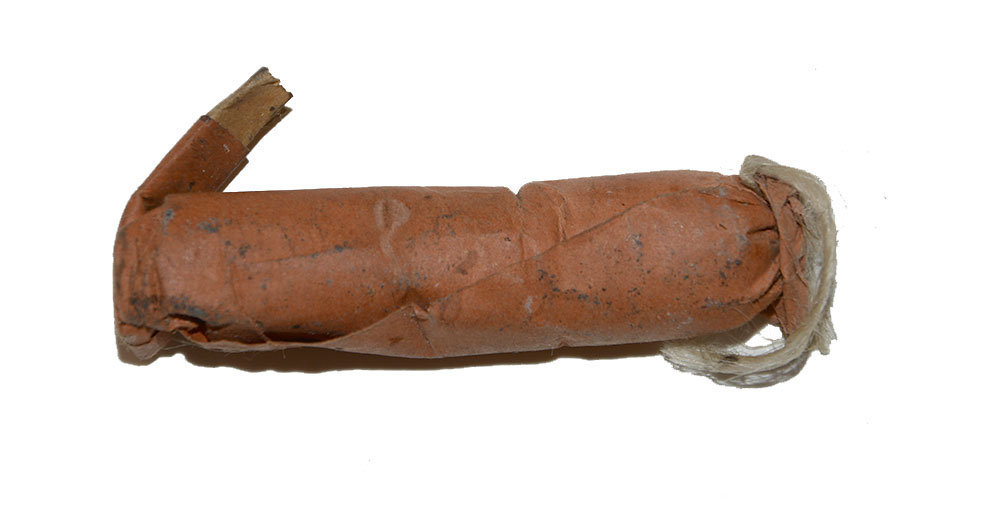

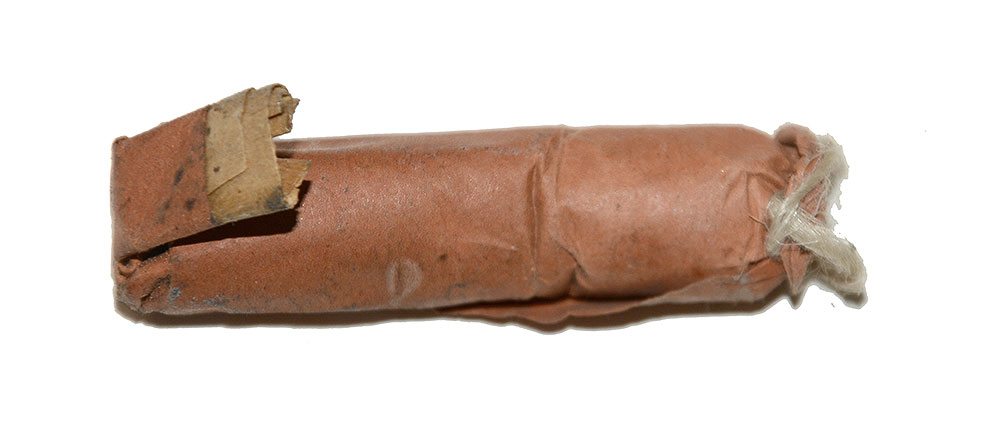

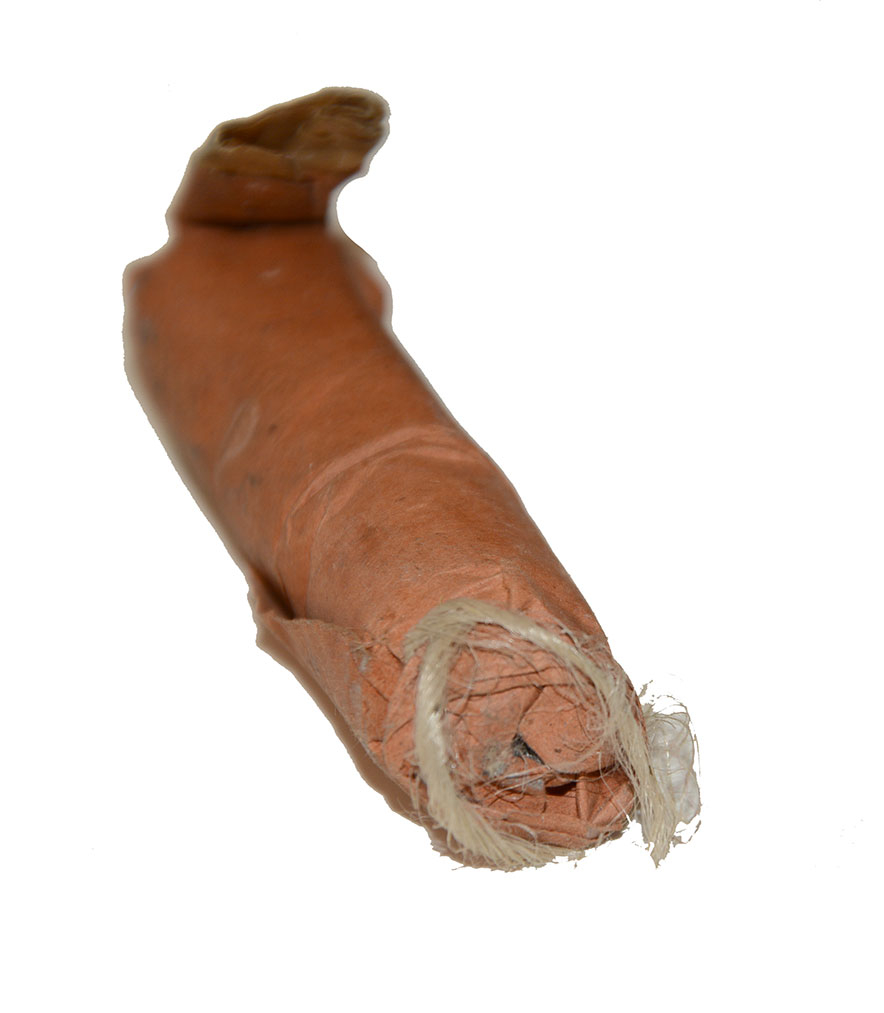

This cartridge is in excellent condition showing good red (or salmon) color to the paper.  Tied with string above the bullet; bottom closed with folds to form the regulation “tail”. The red Williams cartridge is the least commonly encountered.  [jet][ph:L]

UPS shipping required.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
